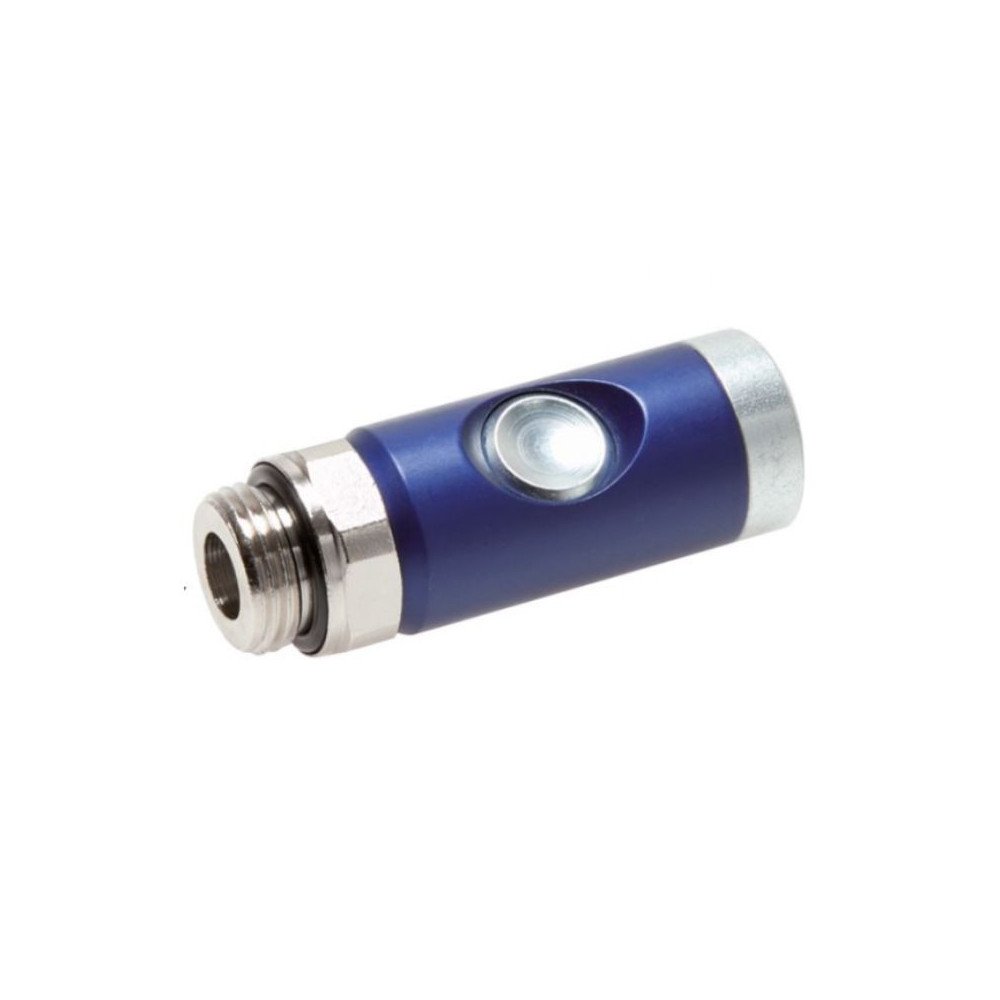

Quick connect hose 1/4" internal thread Safe

Housing: Hardened and galvanised steel / aluminium / nickel-plated brass

Seals: NBR

Temperature range: -20°C to max. +70°C

Operating pressure: 0 to 12 bar

Flow rate: 1500 l/min (6bar, ∆P 0.6bar)

Function: The joint ensures safe disconnection. When disconnecting, press the button, then the connector closes and releases the pressure on the side of the quick connector. This prevents a dangerous rebound effect. The quick-release connector is released by pressing the button a second time.

Recommendation: Use hardened steel quick-release connectors.

Compatible with: Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands.
