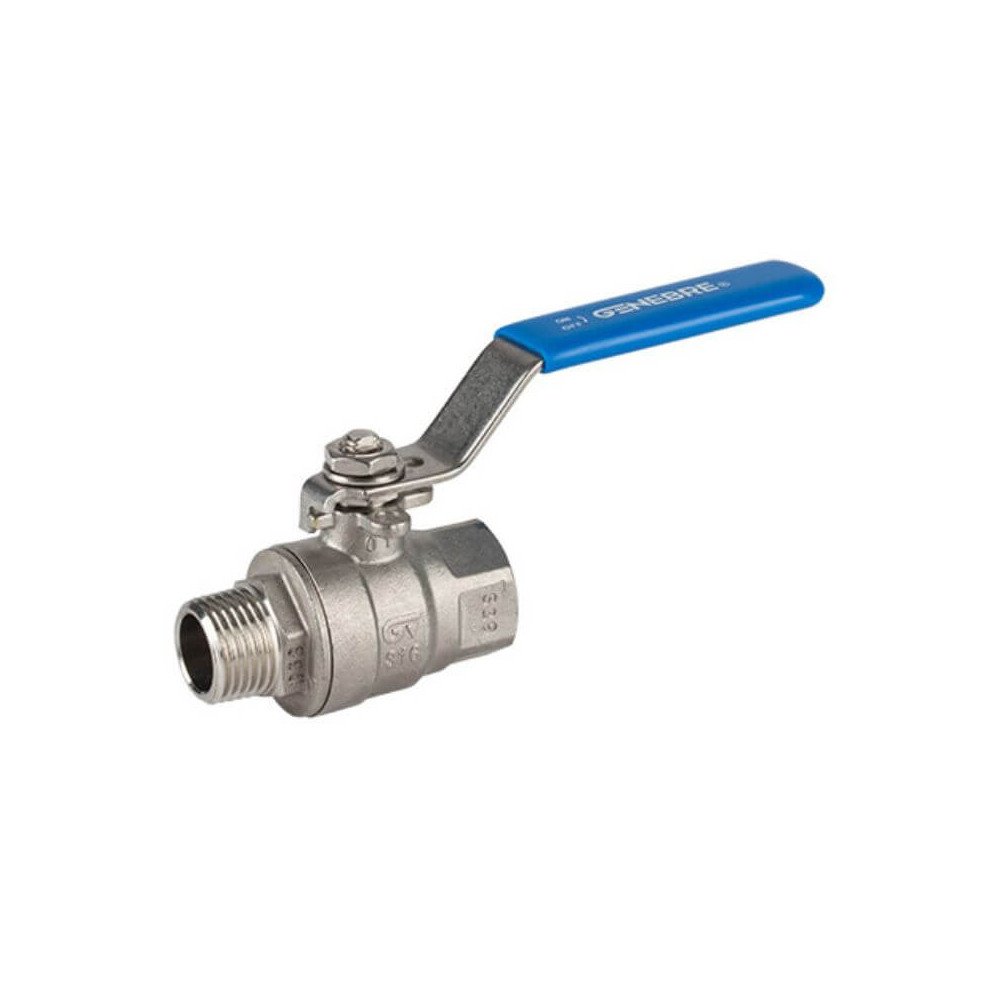

Genebre rutulinis vožtuvas išorė/vidus

Ball Valve 3/8" PN63 Genebre 2013 – Male / Female Thread, Stainless Steel

Genebre
BV-DN10-FM-SS-2013

Stainless steel Genebre 2013 PN63 ball valve with male / female threaded connection, designed for high-pressure water and industrial applications. Full bore construction with PTFE sealing, maximum operating temperature up to 180 °C

Out of Stock


Terms of use



Delivery Terms

The Genebre 2013 PN63 is a stainless steel ball valve with male / female threaded connection, designed for reliable shut-off in high-pressure pipeline systems. The full bore construction ensures minimal pressure loss and unrestricted flow.

The body is manufactured from stainless steel AISI316 (CF8M) with PTFE sealing elements. Threads comply with ISO 7-1, allowing straightforward installation in standard threaded piping systems.

Suitable for water, compressed air, oil and other media compatible with the valve materials. Maximum operating temperature up to 180 °C

: BV-DN10-FM-SS-2013
Out of Stock

Data sheet

Nominal Size (DN)
DN10
Thread (IN)
G 3/8"
Thread
G 3/8"
Connection type
Female / Male
Sealing material
PTFE
Slėgio klasė (PN)
PN63
Max temperature
180 °C
Case material
Nerūdijantis plienas
Brand
Genebre

Specific References

MPN
2013 03
