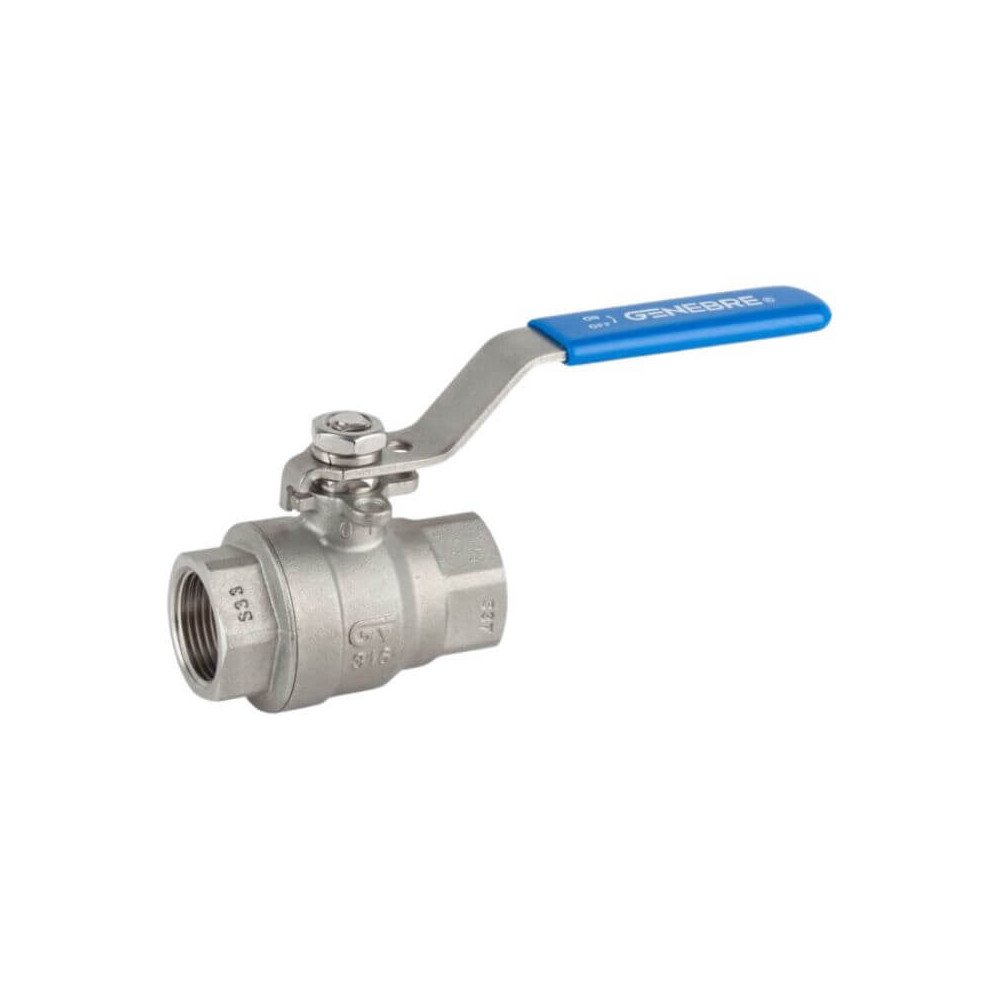

Ball Valve 1 1/4" PN63 Genebre 2014 – Female / Female Thread, Stainless Steel

Ball Valve 1 1/4" PN63 Genebre 2014 – Female / Female Thread, Stainless Steel

Genebre
BV-DN32-FF-SS-2014

Stainless steel Genebre 2014 PN63 ball valve with female / female threaded connection, designed for high-pressure water and industrial applications. 2-piece full bore design with PTFE sealing, maximum operating temperature up to 180 °C

Out of Stock


Terms of use



Delivery Terms

The Genebre 2014 PN63 is a 2-piece stainless steel ball valve designed for reliable shut-off in high-pressure pipeline systems. The full bore construction ensures minimal pressure loss and unrestricted flow performance.

The body is manufactured from stainless steel AISI316 (CF8M) and equipped with PTFE sealing elements. The female / female threaded connection complies with ISO 7-1, allowing straightforward installation in standard threaded piping systems.

Suitable for water, compressed air, oil and other media compatible with the valve materials. Maximum operating temperature up to 180 °C.

: BV-DN32-FF-SS-2014
Out of Stock

Data sheet

Nominal Size (DN)
DN32
Thread (IN)
G 1 1/4"
Connection type
Female / Female
Sealing material
PTFE
Slėgio klasė (PN)
PN63
Max temperature
180 °C
Case material
Nerūdijantis plienas
Brand
Genebre

Specific References

MPN
2014 07
