212.20 Manometras WIKA

212.20 Pressure gauge 0…16 bar, Ø160 mm, G 1/2"

WIKA
PG-16-160-V-D-1.0

Dry pressure gauge for pressure measurement in industrial and technical systems.

Measuring range: 0…16 bar

Case diameter: Ø160 mm

Connection: G 1/2" vertical

Accuracy class: 1.0

Manufacturer / model: WIKA 212.20

Code: 9041800

Out of Stock


Terms of use



Delivery Terms

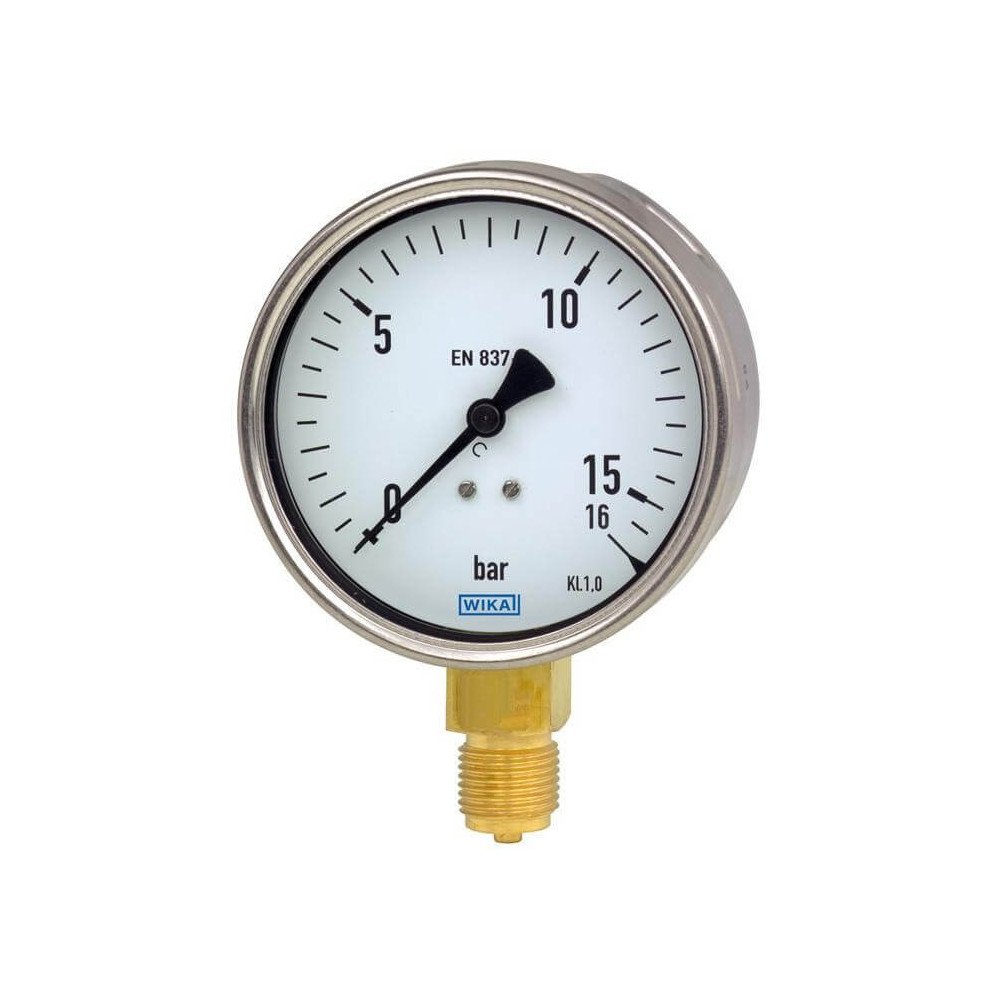

WIKA 212.20 pressure gauge is a mechanical instrument designed for pressure monitoring in industrial and technical applications. The stainless steel case and brass measuring system ensure reliable operation and resistance to environmental influences under standard service conditions.

The gauge is suitable for non-aggressive gases and liquids in hydraulic and pneumatic systems, compressors, pumps and other equipment where clear and stable pressure indication is required. The robust construction allows use in a wide range of industrial applications.

It is a practical solution for general-purpose pressure measurement where reliability and durability are essential.

: PG-16-160-V-D-1.0
Out of Stock

Data sheet

Diameter
160 mm
Measurement range
0…16 bar
Filling
Dry (no filling)
Thread
G 1/2"
Connection orientation
Vertical (bottom connection)
Working Pressure
16 bar
Accuracy class
1.0
Min temperature
–40 °C
Max temperature
+80 °C
Case material
Nerūdijantis plienas
Measuring system
Brass
Protection class
IP54
WIKA series
212.20
Brand
WIKA

Specific References

MPN
9041800
