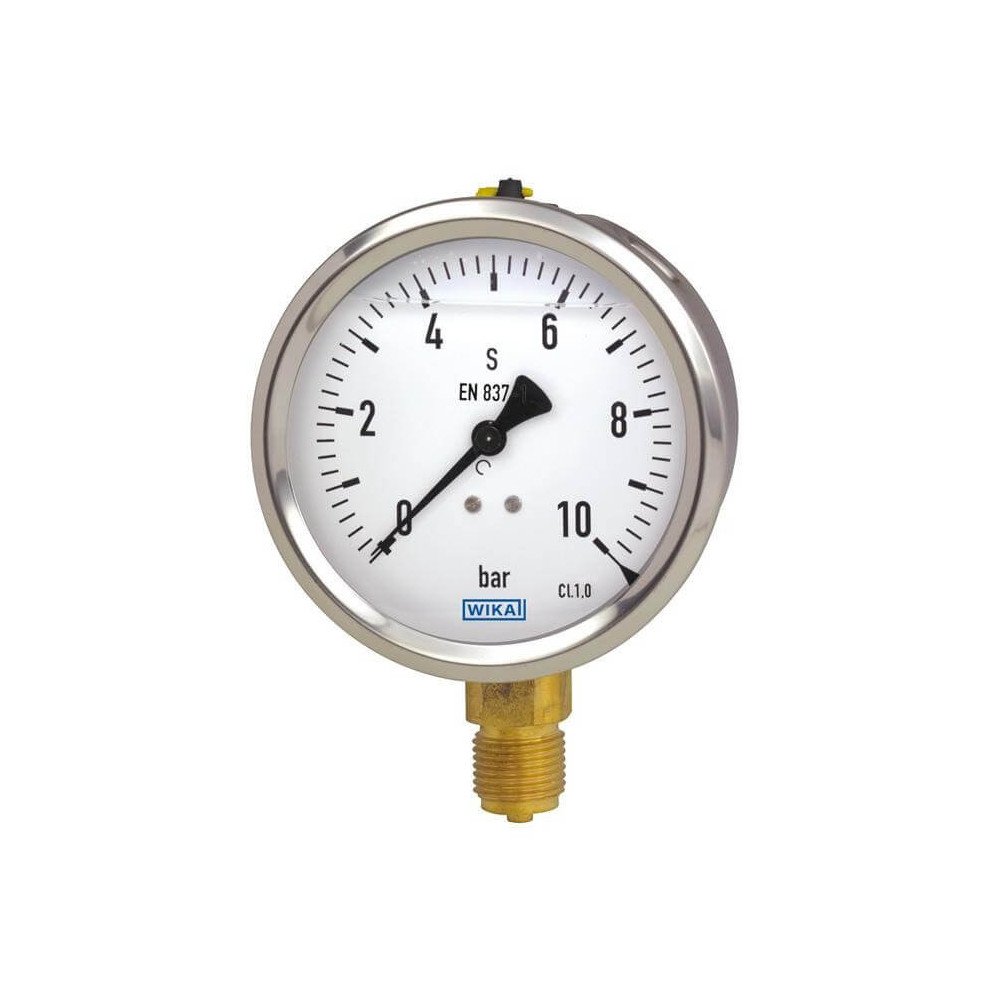

213.53 Glycerine pressure gauge WIKA

213.53 Glycerine pressure gauge 0…40 bar, Ø100 mm, G 1/2"

0 Review(s)
WIKA
PG-40-100-V-G

Glycerine-filled pressure gauge for pressure measurement in vibration environments.

Measuring range: 0…40 bar

Case diameter: Ø100mm

Connection: G 1/2" vertical

Filling: glycerine

Accuracy class: 1.0

Manufacturer / model: WIKA 213.53

Code: 9022643

Out of Stock


Terms of use



Delivery Terms

WIKA 213.53 glycerine-filled pressure gauge is a mechanical instrument designed for operation in vibration and dynamic environments. The liquid filling reduces pointer oscillation and protects the measuring mechanism from vibration, ensuring stable and easy-to-read pressure indication.

The case is made of stainless steel and the measuring system is manufactured from brass, making the gauge suitable for non-aggressive gases and liquids. This model is widely used in hydraulic and pneumatic systems, compressors, pumps and industrial equipment where reliable pressure monitoring under vibration is required.

It is a practical solution when durability, measurement stability and clear pressure indication are essential.

: PG-40-100-V-G
Out of Stock

Data sheet

Diameter
100 mm
Measurement range
0…40 bar
Filling
Glycerine-filled
Thread
G 1/2"
Connection orientation
Vertical (bottom connection)
Working Pressure
40 bar
Accuracy class
1.0
Min temperature
–20 °C
Max temperature
+60 °C
Case material
Nerūdijantis plienas
Measuring system
Brass
Protection class
IP65
WIKA series
213.53
Brand
WIKA

Specific References

MPN
9022643
